Title: Nezumi Oni and Related Vehicles
Description: IFV and derivatives


Otagia - July 10, 2008 02:44 AM (GMT)

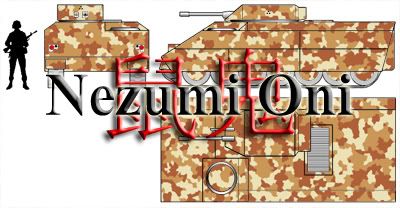

Pale Rider Arms' first foray into the world of IFVs, the Nezumi Oni is an excellent choice for any nation's military. Fast and heavily armored, the Nezumi Oni will get your soldiers in and out of combat zones safely. Armed with a 30mm autocannon in an automated turret with coaxial 13mm HMG. By using a crew of only two, the Nezumi Oni is able to carry up to eight men in full combat gear, among the highest for its size.

QUOTE
user posted image

Length:  6.9 meters
Width:  3 meters
Height:  2.7 meters
Tread Width:  .45 meters
Ground Contact:  5.58 sq. meters
Mass:  30 tonnes
Ground Pressure:  6.63 PSI
Crew:  2 (Commander/gunner, driver)+8

Armor:  Proof against up to 40mm front arc, 20mm sides
Active protection:  Shuushi APS (Otagian version of ARENA)
Passive protection:  Slat armor

Power Plant:  PRA 540 kW Diesel Engine
Top Speed:  80 km/h
Top Swim Speed:  10 km/h
Fuel Capacity: 700 liters
Range:  500 kilometers

Primary Armament:  30x150mm caseless automatic cannon
Secondary Armament:  Coaxial 13mm HMG
Primary Ammunition:  350 rounds
Secondary Ammunition:  800 rounds

Unit Cost:  3,000,000 USD


Pale Rider Arms is dedicated to keeping the Nezumi Oni near the top of its field, and several variants are currently in progress. One such variant, the Kinezumi Minelaying Vehicle, is already on the market.

The Kinezumi Minelaying Vehicle replaces the passenger compartment with a minelaying mechanism and its payload. The mines are dispensed through the floor of the vehicle, and barring the plow located on the front of the vehicle, the Kinezumi is externally indistinguishable from the Nezumi no Oni, maintaining the unmanned 30mm autocannon turret, although armor thickness is lowered to allow the Kinezumi to carry the heavy mine-laying gear while maintaining a similar top speed when compared to the Nezumi no Oni. The Nezumi carries up to 250 Kurumi Anti-Tank Mines, OR 800 Donguri Bounding Anti-Personnel Mines.

QUOTE
Length:  6.9 meters
Width:  3 meters
Height:  2.7 meters
Tread Width:  .45 meters
Ground Contact:  5.58 sq. meters
Mass:  26 tonnes (base weight),  29.2 tonnes (Variant A with full load of mines), 29.15 tonnes (Variant B with full load of mines)
Ground Pressure:  6.63 PSI

Armor:  Proof against up to 25mm
Active protection:  Shuushi APS (Otagian version of ARENA)
Passive protection:  Slat armor

Power Plant:  PRA 540 kW Diesel Engine
Top Speed:  80 km/h
Fuel Capacity: 700 liters
Range:  580 kilometers

Primary Armament:  30x150mm caseless automatic cannon
Secondary Armament:  Coaxial 13mm HMG
Primary Ammunition:  350 rounds
Secondary Ammunition:  800 rounds

Crew:  2 (Commander/gunner, driver)
Mine Capacity (Variant A):  800 Donguri AP Mines
Mine Capacity (Variant B):  250 Kurumi AT Mines

Cost:  2,500,000 USD


QUOTE
Donguri Anti-Personnel Mine
Diameter:  115mm
Height:  250mm
Mass:  4 kilograms
Explosive Mass:  825 grams RDX bounding charge surrounded by 400 preformed fragments
Trigger:  blast-resistant pressure trigger (similar to the Chinese Type 72)
Construction:  Primarily high strength polymer, uses minimal metallic elements
Cost:  60 USD


QUOTE
Kurumi Anti-Tank Mine
Width:  150mm
Length:  1500mm
Height:  90mm
Mass:  12.6 kg
Explosive Mass:  10.3 kg RDX
Trigger:  blast resistant pressure trigger, spanning the entirety of the mine's upper surface
Construction:  Primarily high strength polymer, uses minimal metallic elements
Cost:  500 USD
